Where Is The Engin On This Plane Located Exactly?
User currently offlineSquirrel83 From , joined Dec 1969, posts, RR:
Posted (8 years 10 months 3 weeks 1 day 13 hours ago) and read 5006 times:

On the upper aircraft where in the body of the aircraft is the engine located? (front, rear, ect)


View Large View Medium
Click here for bigger photo!

Photo © Andreas Zeitler - Flying-Wings



7 replies: All unread, jump to last

User currently offlineF4wso From United States of America, joined Oct 2003, 974 posts, RR: 12
Reply 1, posted (8 years 10 months 3 weeks 1 day 12 hours ago) and read 4991 times:

It is in the rear of the fuselage.
Gary



Seeking an honest week's pay for an honest day's work
User currently offlineIADBGO From United States of America, joined Dec 2004, 206 posts, RR: 0
Reply 2, posted (8 years 10 months 3 weeks 1 day 9 hours ago) and read 4927 times:

The engine is in the back just like Gary says. I assume that you are wondering because of the intake at the front of the nose? I believe that is the air intake for the engine. Someone please correct me if I am wrong but the cone contained the MIG's radar system while air traveled inside the fuselage down to the turbines. Not 100% on that but I believe that is the case.

IADBGO


User currently offlineLY744 From Canada, joined Feb 2001, 5536 posts, RR: 10
Reply 3, posted (8 years 10 months 3 weeks 1 day 4 hours ago) and read 4872 times:

Quoting IADBGO (Reply 2):
The engine is in the back just like Gary says. I assume that you are wondering because of the intake at the front of the nose? I believe that is the air intake for the engine. Someone please correct me if I am wrong but the cone contained the MIG's radar system while air traveled inside the fuselage down to the turbines. Not 100% on that but I believe that is the case.

IADBGO

Basicaly, yes. Although not all Fishbeds had Radars in their nose cones (the one in the picture doesn't). The cone moves to control the amount of air getting into the intake and through to the engine. The air itself moves in two ducts that are located on either side of the cockpit I believe. Many other earlier jet fighters use the same basic configuration, including other MiG designs, the Su-7/9/17/20/22 family, the British Lightning, the French Mystere family (sans the nose cone) etc.


LY744.



Pacifism only works if EVERYBODY practices it
User currently offlineLeanOfPeak From United States of America, joined Oct 2004, 509 posts, RR: 1
Reply 4, posted (8 years 10 months 2 weeks 6 days 21 hours ago) and read 4690 times:

It should have more to do with the speed of the incoming air than the amount. The cone is used to produce a shock to slow the incident airflow. Turbojet engines and supersonic inlet flow do not mix particularly well.

User currently offline2H4 From United States of America, joined Oct 2004, 8955 posts, RR: 60
Reply 5, posted (8 years 10 months 2 weeks 6 days 21 hours ago) and read 4685 times:
AIRLINERS.NET CREW
HEAD DATABASE EDITOR

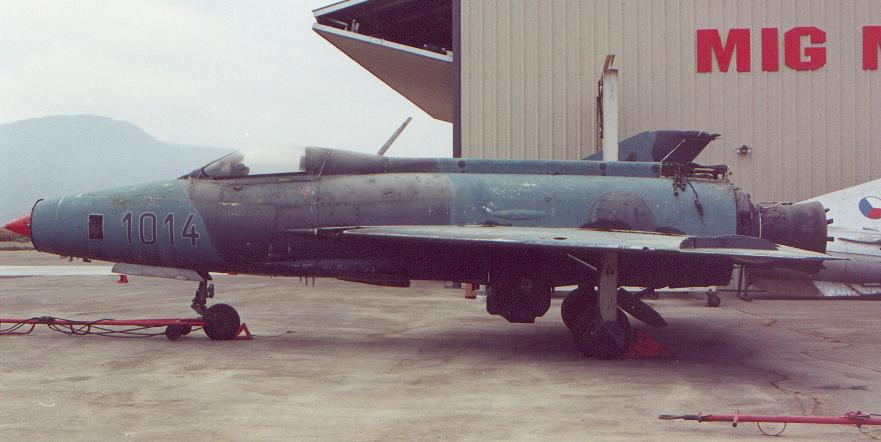

http://www.alioth.net/flying/flying/trips/bigtrip1/trm-mig21.jpg


You can see the engine sticking out of the back. The front of the engine extends (approximately) up to the main landing gear doors.



2H4





Intentionally Left Blank
User currently offlineHAWK21M From India, joined Jan 2001, 31573 posts, RR: 57
Reply 6, posted (8 years 10 months 2 weeks 5 days 13 hours ago) and read 4545 times:

Intake Duct in Front.Engine aft of Fuselage.
regds
MEL



Think of the brighter side!
User currently offlineAirRyan From United States of America, joined Mar 2005, 2532 posts, RR: 5
Reply 7, posted (8 years 10 months 2 weeks 5 days 8 hours ago) and read 4542 times:

This guy sells models on EBay and is quite good.

http://www.imagehostplus.com/v2/is.php?i=106791&img=DSCN5060.jpg

http://www.imagehostplus.com/v2/is.php?i=106806&img=DSCN5068.jpg

http://cgi3.ebay.com/ws/eBayISAPI.dll?ViewUserPage&userid=qoolmodel

[Edited 2005-06-06 17:01:22]

[Edited 2005-06-06 17:01:54]
