Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 4:05 pm

http://www.npr.org/blogs/thetwo-way/...les-patent-for-a-new-kind-of-plane

To mee it looks more like a pack of birth control pills...

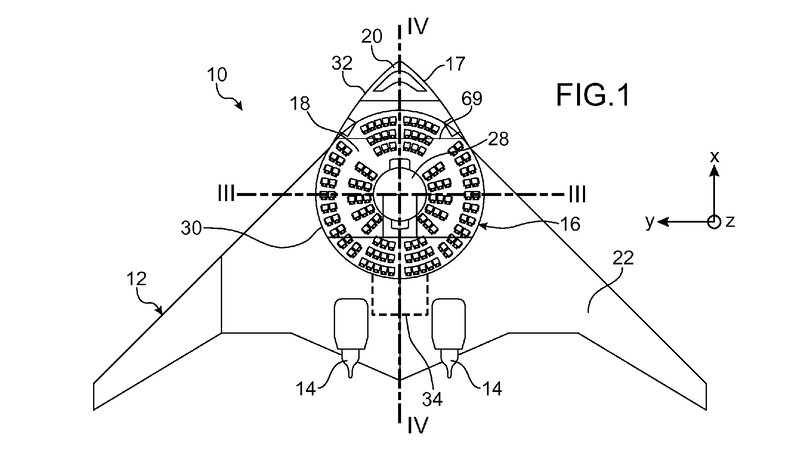

http://media.npr.org/assets/img/2014/11/17/airbus_wide-e743dd0bb965f8f467b7c5a9dd636e77080cc1f6-s800-c85.jpg
Kids!....we are going to the happiest place on earth...TIJUANA! signed: Krusty the Clown

User avatar
KarelXWB
Posts: 26968
Joined: Sun Jul 15, 2012 6:13 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 4:21 pm

It's just a patent. The bulk of the patents are never used.
What we leave behind is not as important as how we've lived.

holzmann
Posts: 599
Joined: Mon Jan 17, 2011 3:43 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 4:27 pm

The NPR Facebook post has a few gems with over 500 replies...
DISCLAIMER: Airliners.net is an AIRBUS forum. Boeing Commercial Airplanes, if it has considered doing so in the past, should in no way consider supporting this website.

Byrdluvs747
Posts: 2522
Joined: Thu Jul 15, 2004 5:25 am

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 4:45 pm

The title says that Airbus invented a new type of plane, but that design was create by someone else I thought.
The 747: The hands who designed it were guided by god.

User avatar
BN727227Ultra
Posts: 667
Joined: Fri Jan 10, 2014 7:15 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 6:51 pm

EK is buying 200 of them...

User avatar
DocLightning
Posts: 21677
Joined: Wed Nov 16, 2005 8:51 am

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 7:08 pm

I don't understand. It's easy to add passengers to a tube-and-wings. Just stretch the tube. This would involve a whole new type. And there's a lot more wing-to-payload going on here.
-Doc Lightning-

"The sky calls to us. If we do not destroy ourselves, we will one day venture to the stars."
-Carl Sagan

lhrnue
Posts: 322
Joined: Sat Jun 05, 2010 2:47 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 9:29 pm

Quoting BN727227Ultra (Reply 4):
EK is buying 200 of them...

Only if Airbus is doing a Double-Decker-NEO option.

User avatar
LAX772LR
Posts: 12900
Joined: Sun Nov 09, 2014 11:06 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 9:59 pm

How would something like this pass evac standards?
...many of those seats are more than two units from an aisle.

Sure, I guess they can put ceiling evac into it; but what happens if it ends up upside-down on its back?
I myself, suspect a more prosaic motive... ~Thranduil

Wingtips56
Posts: 1225
Joined: Thu Dec 16, 2010 1:26 am

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 10:11 pm

Quoting LAX772LR (Reply 7):
How would something like this pass evac standards?
...many of those seats are more than two units from an aisle.

The widest there is 5 seats, which is common to DC10, MD11, some 777. The limit is no more than two seats between you and the aisle, so that middle seat of 5 (though awful to be stuck in) is legal. That's the issue facing the 11-abreast A380 proposal: it would have to be configured 3-5-3, as 4 seats on the window wouldn't pass.
Worked for WestAir, Apollo Airways, Desert Pacific, Western, AirCal and American Airlines (Retired). Flight Memory: 181 airports, 92 airlines, 78 a/c types, 403 routes, 58 countries (by air), 6 continents. 1,119,414 passenger miles.

Home airport : CEC

NickLAX
Posts: 257
Joined: Wed Jun 12, 2013 8:48 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 10:12 pm

Wasn't this the windowless conceptual design that can allow for a true aerodynamic design??

User avatar
Ab345
Posts: 1048
Joined: Mon Nov 18, 2013 2:44 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 10:15 pm

No rest for the bashers tonight

tomcat
Posts: 486
Joined: Thu Sep 28, 2000 4:14 am

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 10:38 pm

Where will be located the first class? Towards the center maybe?

By creating a hole in the center of the body, this design addresses somehow the lack of natural light reaching the areas distant from the leading edge. Emirates could turn the center into a nice patio or an oasis  .

User avatar
LAX772LR
Posts: 12900
Joined: Sun Nov 09, 2014 11:06 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 10:49 pm

Quoting Wingtips56 (Reply 8):
The widest there is 5 seats

I guess that's what i get for looking at it on a phone... that whole top circle seemed like 11, 9, and 7 seats in a row, but now I can see that that's just an axis line drawn through them.
I myself, suspect a more prosaic motive... ~Thranduil

jolau1701
Posts: 101
Joined: Wed Feb 25, 2009 7:35 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 11:06 pm

Three words: Flying Rotating Restaurant. .......

Wingtips56
Posts: 1225
Joined: Thu Dec 16, 2010 1:26 am

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 11:14 pm

Quoting LAX772LR (Reply 12):
I guess that's what i get for looking at it on a phone... that whole top circle seemed like 11, 9, and 7 seats in a row, but now I can see that that's just an axis line drawn through them.

Well I had to look again to be sure I saw spacing indicating an aisle, versus just the axis line. But it does appear to be 5-5.
Worked for WestAir, Apollo Airways, Desert Pacific, Western, AirCal and American Airlines (Retired). Flight Memory: 181 airports, 92 airlines, 78 a/c types, 403 routes, 58 countries (by air), 6 continents. 1,119,414 passenger miles.

Home airport : CEC

tomcat
Posts: 486
Joined: Thu Sep 28, 2000 4:14 am

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 11:23 pm


User avatar
BaconButty
Posts: 820
Joined: Tue Aug 06, 2013 3:42 pm

RE: Airbus Patents....the Flying Doughnut?

Tue Nov 18, 2014 11:48 pm

Quoting LAX772LR (Reply 12):
I guess that's what i get for looking at it on a phone... that whole top circle seemed like 11, 9, and 7 seats in a row, but now I can see that that's just an axis line drawn through them.

Firstly, can I just say I'm not too sure about the ladies medication angle here, they're more of a Shorts SkyVan over here (rectangular box).
But I wouldn't get too hung up on the seating arrangements - they're not really relevant to the patent.
http://worldwide.espacenet.com/publi...te=20141030&DB=EPODOC&locale=en_EP
I think the real patent is taken up with how to embed a pressure vessel within a BWB. A disc is the most obvious answer, but as it gets bigger the loads in the vertical axis become a constraint - hence the doughnut. Three things that struck me:
1. the proposed exit arrangement (see p7 fig10)
2. The use of the, er, "Ringpiece" for storing baggage (say fig16 p9)
3. How oval (and other) configurations might fit (p7-8)
Haven't read all the blurb in it yet - will when sober - but it suggests a continued attempt to evaluate "exotic" configurations in the future (NB replacement?)
Down with that sort of thing!

User avatar
LAX772LR
Posts: 12900
Joined: Sun Nov 09, 2014 11:06 pm

RE: Airbus Patents....the Flying Doughnut?

Wed Nov 19, 2014 1:22 am

Quoting BaconButty (Reply 16):
Haven't read all the blurb in it yet - will when sober

LOL, that's awesome.

Particularly seeing as how informative your post is!
I myself, suspect a more prosaic motive... ~Thranduil

User avatar
DocLightning
Posts: 21677
Joined: Wed Nov 16, 2005 8:51 am

RE: Airbus Patents....the Flying Doughnut?

Wed Nov 19, 2014 2:25 am

Quoting BaconButty (Reply 16):
I think the real patent is taken up with how to embed a pressure vessel within a BWB. A disc is the most obvious answer, but as it gets bigger the loads in the vertical axis become a constraint - hence the doughnut. Three things that struck me:
1. the proposed exit arrangement (see p7 fig10)
2. The use of the, er, "Ringpiece" for storing baggage (say fig16 p9)
3. How oval (and other) configurations might fit (p7-8)
Haven't read all the blurb in it yet - will when sober - but it suggests a continued attempt to evaluate "exotic" configurations in the future (NB replacement?)

It's interesting, but it suffers from some major limitations. The biggest is the lack of expandability. With a linear fuselage, you can just stretch the fuselage. Hence, A318-A321. With this, any expansion of the fuselage requires expansion of the entire airframe. Even if the eliptical configuration is used, it still requires major structural modifications. Also, the depicted methods of embarcartion/debarcation would require major changes to existing airport infrastructure. A much larger airframe with more under-body clearance might be more suited to this. A boarding elevator could also be built in, but that would add weight and mechanical complexity.

It's still a very interesting idea, though.
-Doc Lightning-

"The sky calls to us. If we do not destroy ourselves, we will one day venture to the stars."
-Carl Sagan

User avatar
solnabo
Posts: 5025
Joined: Fri Jan 11, 2008 8:53 am

RE: Airbus Patents....the Flying Doughnut?

Wed Nov 19, 2014 8:59 am

Quoting Marcus (Thread starter):
To mee it looks more like a pack of birth control pills...

Thank you Marcus, you´re spot on and that statement made my day (coffee all over the table)

Mike
Airbus SAS - Love them both

rampart
Posts: 1800
Joined: Sun Aug 07, 2005 5:58 am

RE: Airbus Patents....the Flying Doughnut?

Thu Nov 20, 2014 2:21 pm

So, I can't determine from the patent language, or was it established elsewhere beyond this patent, does the "donut hole" assist the aerodynamics of the flying body?

Tangential, I think the patent verbiage could have been much simpler if they simply used the term "torus" for the donut-cylinder, "a-space-defined-outside-the-cabin-and-inside-the-aircraft".

-Rampart
